Custom Metal Roll Forming

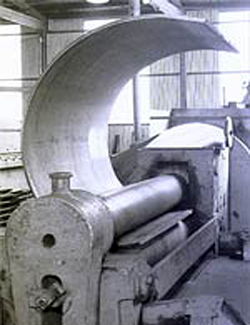

Heavy Capacity Plate Roll
Heavy Capacity Plate Roll

Equipment
Light Capacity Plate Roll

We specialize in custom Roll Forming and Bending. As a full service Steel Plate and Pipe Fabrication job shop, we also offer High Definition Plasma cutting and Welding to AWS D1.1 specifications.

Representative products include:
  • Tanks / Cylinders
  • Bar Rings / Angle Rings
  • Cutterhead Cylinders
  • Duct Work
  • Stacks / Hoppers
  • Elbows
Materials include:
  • Carbon Steel
  • Stainless Steel
  • Aluminum
  • Abrasion Resistant Plate
Equipment List for Roll Forming:
  • 3 Angle Rolls
    • Up to 6” x 6” x 1” leg out & 5” x 5” x 1” leg in,
       including bars on edge, channel, tees & pipe
    • Bars on edge up to 1 ¼” x 7” & 2 ½” x 6”
    • Pipe 1 1/2” & 2”

  • 7 Plate Rolls
    • Plate thicknesses range from 1/8” to 4” thick,
      depending on size & type of material
    • Includes cylinders & rings from 10” to 12’
      diameter in maximum widths of 15’
Examples of 7 Plate Rolls:
Big Pinch Roll.
2” x 42” x 27” I.D.
1 1/4” x 120” x 144” I.D.
(1-piece construction)
Small Pinch Roll
1” x 59” x 18” I.D.
2 ” x 12” x 22” I.D.
4 Small Rolls
¼” x 96” x 10” I.D.
3/8” x 96” x 16 ¼” I.D.
3/16” x 117” x 10 ½” I.D.
1” x 10” x 14 ½” I.D.
1/16” x 36” x 5” I.D.
Pyramid Roll
Up to 12’ diameter in a 1 piece construction - ¼” x 132” x 22” I.D.
Copper - 5/16” x 168” I.D.

Many other examples are possible. Please contact us with your specific request.
